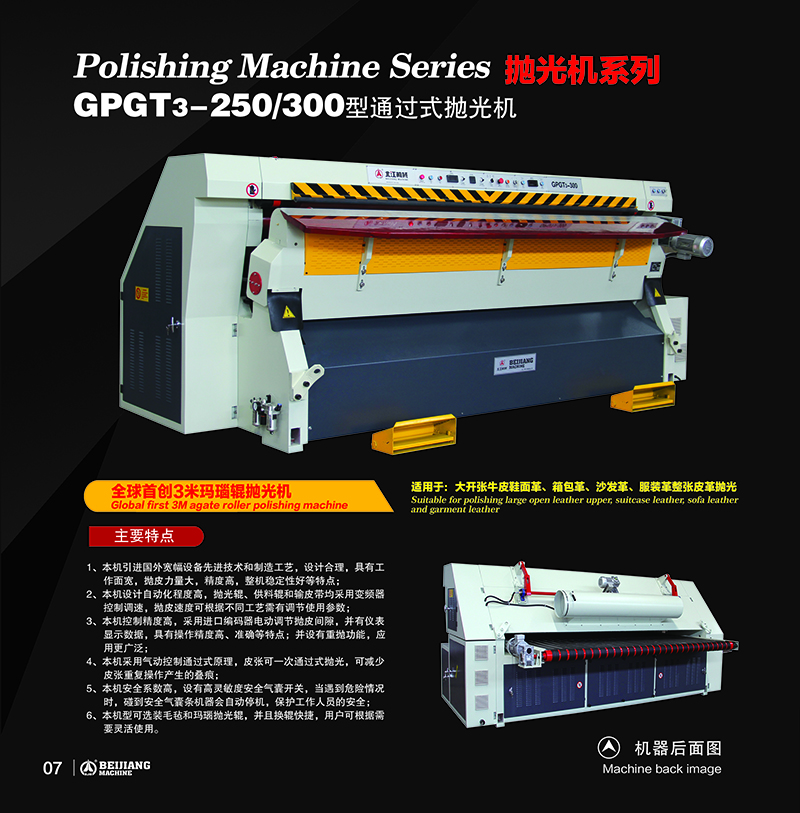

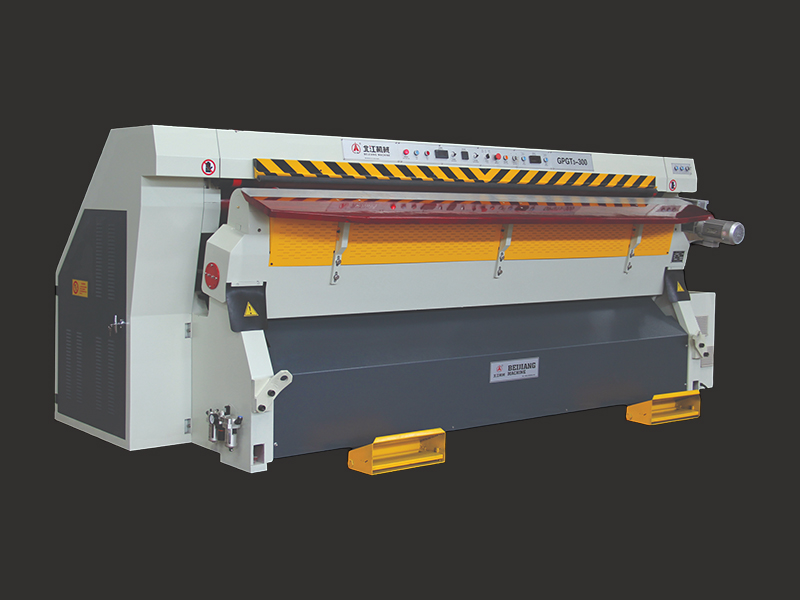

GPGT3-300型通過式拋光機

一、主要技術參數Main technical parameters

全球首創3米瑪瑙輥拋光機Global first 3M agate roller polishing machine

適用于：大開張牛皮鞋面革、箱包革、沙發革、服裝革整張皮革拋光

Suitable for polishing large open leather upper, suitcase leather, sofa leather and garment leather

二、 主要特點Working Characteristics

1、本機引進國外寬幅設備先進技術和制造工藝，設計合理，具有工作面寬、拋皮力量大、精度高、整機穩定性好等特點；

1. The machine imports advanced technology and manufacturing technology of foreign wide-band equipment with reasonable design, wide working face, large throwing force, high precision and good stability of the whole machine.

2、本機設計自動化程度高，拋光輥、供料輥和輸皮帶均采用變頻器控制調速，拋皮速度可根據不同工藝需有調節使用參數；

2. The machine has a high degree of automation in design. The polishing roll, feeding roll and conveying belt are all controlled by frequency converter, and the throwing speed can be adjusted according to different process requirements

3、本機控制精度高，采用進口編碼器電動調節拋皮間隙，并有儀表顯示數據，具有操作精度高、準確等特點；并設有重拋功能，應用更廣泛；

3. The machine has high control precision, adopts imported encoder to adjust the throwing clearance, and has the instrument display data, which has the characteristics of high operation accuracy and accuracy, and has the function of re-throwing, which is more widely used.

4、本機采用氣動控制通過式原理，皮張可一次通過式拋光，可減少皮張重復操作產生的疊痕；

4. The machine adopts the pneumatic control passing principle. The leather can be polished by one pass, which can reduce the overlap caused by repeated operation of the leather.

5、本機安全系數高，設有高靈敏度安全氣囊開關，當遇到危險情況時，碰到安全氣囊條機器會自動停機，保護工作人員的安全

5. The machine has high safety factor and high sensitivity airbag switch. When encountering dangerous situation, the machine will stop automatically when encountering the airbag bar to protect the safety of workers.

6、本機型可選裝毛氈和瑪瑙拋光輥，并且換輥快捷，用戶可根據需要靈活使用。

6. The machine can be equipped with felt and agate polishing rollers, and the rollers can be changed quickly. Users can use them flexibly according to their needs.
